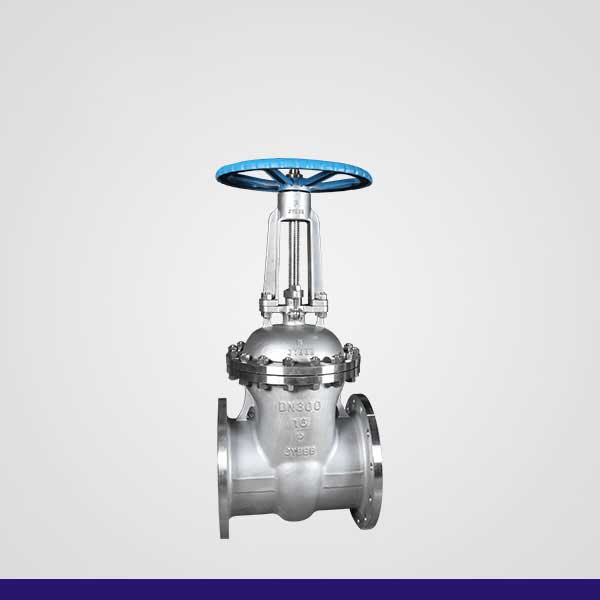

316L Rising Stem Gate Valve Z41W

材质：

WCB304316316L2205

口径：

DN800DN15

立即询价

产品参数

316L Rising Stem Gate Valve Z41W

Advantages

1. Extremely low flow resistance. The internal passage of the valve body is straight-through, allowing medium to flow in a straight line with minimal flow loss.

2. Requires less opening/closing force. Compared with globe valves, the movement direction of the gate plate is perpendicular to the medium flow direction during opening and closing operation.

3. High overall height and long operation travel. The gate plate travels a large stroke, with opening and closing driven by the stem screw rotation.

4. Less prone to water hammer, thanks to its long closing time.

5. Medium can flow freely in both directions, allowing for easy installation. The gate channel is symmetrical on both sides.

6. Short structural length (distance between the two end connecting flanges).

7. Simple overall shape, short structural length, excellent manufacturing process, wide range of applications.

8. Compact structure, high valve rigidity, smooth flow passage and low flow resistance. The sealing surface adopts stainless steel and hard alloy overlay, ensuring long service life. Equipped with PTFE packing for reliable sealing and easy operation.

Disadvantages

The sealing surface is prone to erosion and scratches, making maintenance relatively difficult. Large overall dimensions require extra installation space for operation, with long closing time and complex internal structure.

Main Overall & Connection Dimensions
国标（GB）PN1.0MPa
DN	L	D	D1	D2	b	f	Z-фd	H
15	108	95	65	46	14	2	4-ф14	160
20	117	105	75	56	16	2	4-ф14	165
25	127	115	85	65	16	2	4-ф14	200
32	140	140	100	76	18	2	4-ф18	240
40	165	150	110	84	18	2	4-ф18	245
50	180	165	125	99	20	2	4-ф18	286
65	195	185	145	118	20	2	4-ф18	320
80	210	200	160	132	20	2	8-ф18	373
100	230	220	180	156	22	2	8-ф18	428
125	255	250	210	184	22	2	8-ф18	513
150	280	285	240	211	24	2	8-ф22	582
200	330	340	295	266	24	2	8-ф22	730
250	380	395	350	319	26	2	12-ф22	897
300	420	445	400	370	26	2	12-ф22	1032
350	450	505	460	429	26	2	16-ф22	1170
400	480	565	515	480	26	2	16-ф26	1330
450	510	615	565	530	28	2	20-ф26	1460
500	540	670	620	582	28	2	20-ф26	1650
600	600	780	725	682	34	2	20-ф30	1830
700	665	895	840	794	34	5	24-ф30	2120
800	730	1015	950	901	36	5	24-ф33	2420
900	800	1115	1050	1001	38	5	28-ф33	2750
1000	850	1230	1160	1112	38	5	28-ф36	3130
国标（GB）PN1.6MPa
DN	L	D	D1	D2	b	f	Z-фd	H
15	130	95	65	45	14	2	4-ф14	170
20	150	105	75	55	14	2	4-ф14	190
25	160	115	85	65	14	2	4-ф14	205
32	180	135	100	78	16	2	4-ф18	270
40	200	145	110	85	16	3	4-ф18	310
50	250	160	125	100	16	3	4-ф18	358
65	265	180	145	120	18	3	4-ф18	373
80	280	195	160	135	20	3	8-ф18	435
100	300	215	180	155	20	3	8-ф18	500
125	325	245	210	185	22	3	8-ф18	614
150	350	280	240	210	24	3	8-ф23	674
200	400	335	295	265	26	3	12-ф23	818
250	450	405	355	320	30	3	12-ф25	969
300	500	460	410	375	30	4	12-ф25	1145
350	550	520	470	435	34	4	16-ф25	1280
400	600	580	525	485	36	4	16-ф30	1450
450	650	640	585	545	40	4	20-ф30	1541
500	700	705	650	608	44	4	20-ф34	1676
600	800	840	770	718	48	5	20-ф41	1874
700	900	910	840	788	50	5	24-ф41	2083
800	1000	1020	950	898	52	5	24-ф41	2400
900	1100	1120	1050	998	54	5	28-ф41	2950
1000	1200	1255	1170	1110	56	5	28-ф48	3245
国标（GB）PN2.5MPa
DN	L	D	D1	D2	b	f	Z-фd	H
15	130	95	65	45	16	2	4-ф14	170
20	150	105	75	55	16	2	4-ф14	190
25	160	115	85	65	16	2	4-ф14	205
32	180	135	100	78	18	2	4-ф18	270
40	200	145	110	85	18	3	4-ф18	310
50	250	160	125	100	20	3	4-ф18	358
65	270	180	145	120	22	3	4-ф18	373
80	280	195	160	135	22	3	8-ф18	435
100	300	230	190	160	24	3	8-ф23	500
125	325	270	220	188	28	3	8-ф25	614
150	350	300	250	218	30	3	8-ф25	674
200	400	360	310	278	34	3	12-ф25	818
250	450	425	370	332	36	3	12-ф30	969
300	500	485	430	390	40	4	16-ф30	1145
350	550	550	490	448	44	4	16-ф34	1280
400	600	610	550	505	48	4	16-ф34	1450
450	650	660	600	555	50	4	20-ф34	1541
500	700	730	660	610	52	4	20-ф41	1676
600	800	840	770	718	56	5	20-ф41	1874
700	900	955	875	815	60	5	24-ф48	2083
800	1000	1070	990	930	64	5	24-ф48	2400
900	1100	1180	1090	1025	66	5	28-ф54	2950
1000	1200	1305	1210	1140	68	5	28-ф58	3245
国标（GB）PN4.0MPa
DN	L	D	D1	D2	b	f	Z-фd	H
15	130	95	65	45	16	2	4-ф14	135
20	150	105	75	55	16	2	4-ф14	190
25	160	115	85	65	16	2	4-ф14	205
32	180	135	100	78	18	2	4-ф18	270
40	200	145	110	85	18	3	4-ф18	310
50	250	160	125	100	20	3	4-ф18	371
65	280	180	145	120	22	3	8-ф18	391
80	310	195	160	135	22	3	8-ф18	455
100	350	230	190	160	24	3	8-ф23	551
125	400	270	220	188	28	3	8-ф25	628
150	450	300	250	218	30	3	8-ф25	708
200	550	375	320	282	38	3	12-ф30	885
250	650	445	385	345	42	3	12-ф34	906
300	750	510	450	408	46	4	16-ф34	1203
350	850	570	510	465	52	4	16-ф34	1341
400	950	655	585	535	58	4	16-ф41	1429
450	1050	680	610	560	60	4	20-ф41	1581
500	1150	755	670	612	62	4	20-ф48	1627
600	1350	890	795	730	62	5	20-ф54	1925
700	1450	995	900	835	68	5	24-ф54	2310
800	1650	1135	1030	960	76	5	24-ф58	2600
国标（GB）PN6.4MPa
DN	L	D	D1	D2	b	f	Z-фd	H
15	170	105	75	55	18	2	4-ф14	140
20	190	125	90	68	20	2	4-ф18	140
25	210	135	100	78	22	2	4-ф18	215
32	230	150	110	82	24	2	4-ф23	270
40	240	165	125	95	24	3	4-ф23	345
50	250	175	135	105	26	3	4-ф23	470
65	280	200	160	130	28	3	8-ф23	520
80	310	210	170	140	30	3	8-ф23	570
100	350	250	200	168	32	3	8-ф25	700
125	400	295	240	202	36	3	8-ф30	780
150	450	340	280	240	38	3	8-ф34	850
200	550	405	345	300	44	3	12-ф34	1035
250	650	470	400	352	48	3	12-ф41	1050
300	750	530	460	412	54	4	16-ф41	1470
350	850	595	525	475	60	4	16-ф41	1718
400	950	670	585	525	66	4	16-ф48	1885
500	1150	800	705	640	70	4	20-ф54	2410
600	1350	930	820	750	76	5	20-ф58	2895
国标（GB）PN10.0MPa
DN	L	D	D1	D2	b	f	Z-фd	H
15	170	105	75	55	20	2	4-ф14	140
20	190	125	90	68	22	2	4-ф18	140
25	210	135	100	78	24	2	4-ф18	310
32	230	150	110	82	24	2	4-ф23	320
40	240	165	125	95	26	3	4-ф23	360
50	250	195	145	112	28	3	4-ф25	490
65	280	220	170	138	32	3	8-ф25	540
80	310	230	180	148	34	3	8-ф25	572
100	350	265	210	172	38	3	8-ф30	573
125	400	310	250	210	42	3	8-ф34	744
150	450	350	290	250	46	3	12-ф34	800
200	550	430	360	312	54	3	12-ф41	800
250	650	500	430	382	60	3	12-ф41	1050
300	750	585	500	442	70	4	16-ф48	1200
350	850	655	560	498	76	4	16-ф54	1430
400	950	715	620	558	80	4	16-ф54	1743
